30063 X3-SERIES for Race Boats

Unleash power in a compact package! Our 300A ESC features efficient water-cooling and a sleek carbon design, perfect for maximizing your RC boat's performance.

Price includes following configuration
30063 X3-SERIES for Race Boats 808,00 €
Water-cooled heatsink L 74,95 €
Axially placed capacitors and power cables 0,00 €
power cables 6.0 mm2 (10 AWG) 8,95 €
External cap pack 44,95 €
Price total excl. VAT 936,85 €
nazev produktu
Need a different configuration?

Make your own custom configuration that fits your model. Choose from multiple add-ons and stand out from the crowd.

CONFIGURE YOUR OWN
Number of cells
Number of cells
4 - 15
Operating voltage
Operating voltage
12 - 63 V
Continuous current
Continuous current
300A
Max. phase current
Max. phase current
460A

Meet the evolution!

30063 X3-SERIES is the successor of the compact X2-SERIES 250A ESC. While all dimensions of the ESC remained almost the same, the power increased!
Now ready to deliver an impressive 18.9kW of raw power to your model, the possibility of connecting up to 15 cell batteries makes this ESC's size-to-power ratio unique.

What's new?

The X3-SERIES connects and retrieves data much faster than the previous generation. The new USBCOM6i PC module and CC_12 cables come with updated Controller 3 software (finally being available on MAC) with wireless connection and will soon support wireless connections and a mobile app.

The ESC can store multiple datalogs for up to 12.5 hours, eliminating the need to read and save data after each run. We've worked on reducing cogging during acceleration, achieving almost "sensored" performance while running sensorless motors. The ESC will automatically switch from sensored to sensorless mode if anything happens to your motor. (Battlebots team, we've got you covered).

carbon-30063-wc-width

Design change!

By default, this controller is now shipped with ring terminals instead of soldered wires. This offers a stronger and industry-standard connection, allowing for easy replacement of wires with longer ones or the addition of external capacitors, all without the need for soldering.

ESC comes equipped with:

  • Motor temperature sensor
  • Battery temperature sensor
  • 5V hall sensor compatibility + cable with EFRA connector
  • PWM cable
  • Telemetry cable (compatible with JETI, Graupner, and Futaba telemetry!)
  • ON/OFF Switch
  • Special coating of all PCBs for humidity protection

You can configure cables, connectors, cooling and accessories under the "CONFIGURE YOUR OWN" button.


front-30063-wc-width

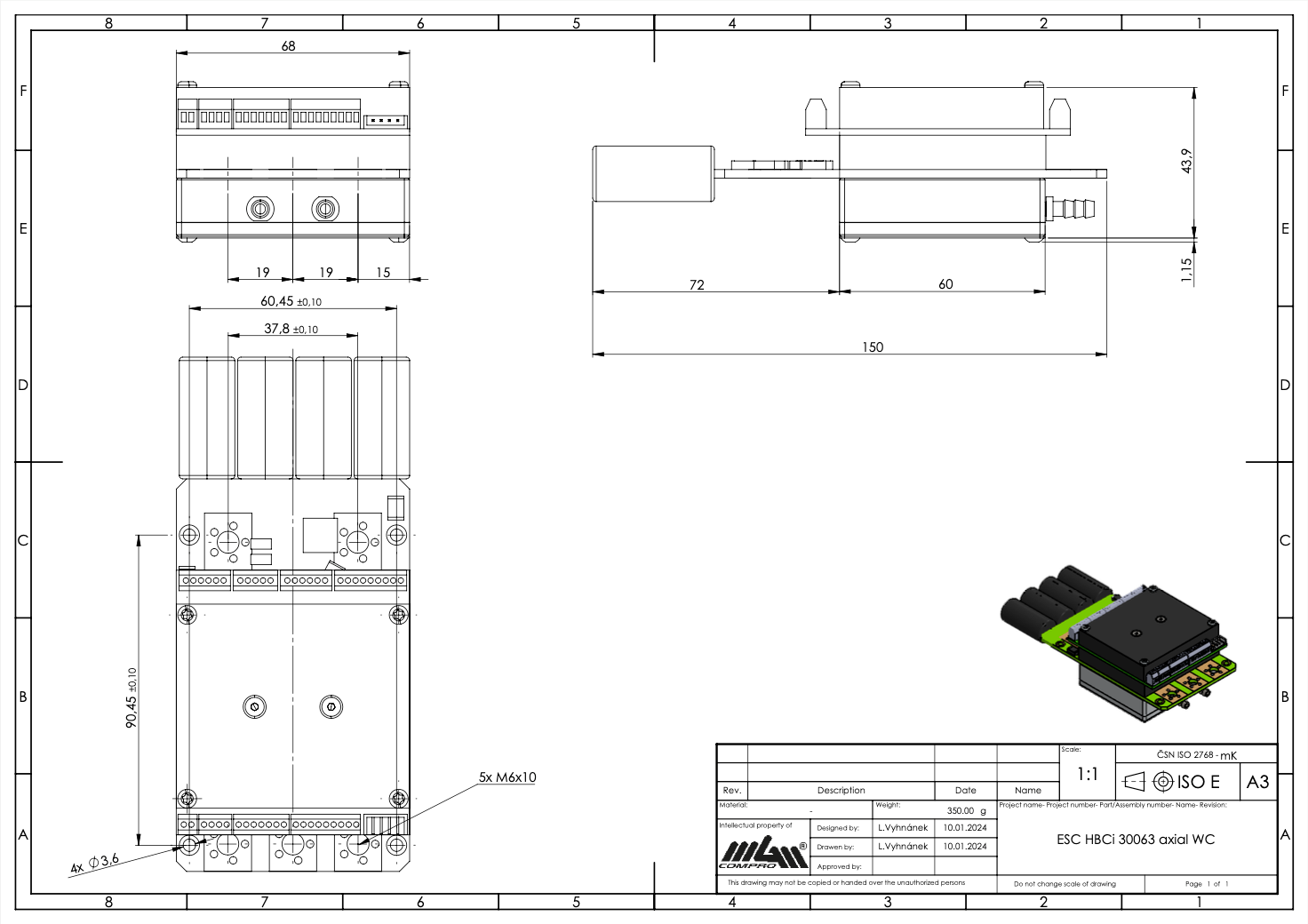

30063-x3-series-wc

Model Type For boats
Number of cells 4 - 15
Operating voltage 12 - 63 V
Continuous current 300A
Max. phase current 460A
x3-series_logo_

The X3-SERIES is the result of over 30 years of experience in ESC development. Our newest ESCs are designed to be pushed to the limit = that's when they are most efficient. Just turn on the Keep-the-Limit function and break the records! X3-SERIES controllers have a much faster PC connectivity with our Controller 3 program finally available on Apple devices. The ESC has been upgraded with larger memory and can store up to 12.5 hours of data.

Developed with RC modelers in mind, we used our experience from various industrial projects to create reliable ESCs with sophisticated system of fuses for the safety of your model. This comes backed by 3 years warranty.

Nazev
Warranty
Nazev
Premium customer service
Nazev
High controller efficiency
Nazev
up 12,5 hours of data logging
Nazev
Unique systemof battery care
Nazev
32 bit system
Nazev
KEEP-THE-LIMIT Function
Nazev
Each piece tested
Nazev
Golden multilayerPCB - 105µ
