40035 X3-SERIES for Race Boats
TMM 40035-3 X3-SERIES releases in limited quantity batches. AVAILABLE FOR SHIPMENT IN MARCH.
| 40035 X3-SERIES for Race Boats | 625,00 € |
| Price total excl. VAT | 625,00 € |
Make your own custom configuration that fits your model. Choose from multiple add-ons and stand out from the crowd.
CONFIGURE YOUR OWN
Focused on speed
Feel the speed with the new TMM 40035-3 X3-SERIES! Reach your speed goals with ease with the new Keep-The-Limit function. Once you hit the power limit of the ESC, it will not reduce the power, but stay at the limit while the ESC works its magic trying to push the limit even further. The ESC is designed for 900A peak, making any racing boat unbeatable.
What's new?
The X3-SERIES connects and retrieves data much faster than the previous generation. New USBCOM6i PC module and CC_12 cables come with updated Controller 3 software finally being available on MAC with wireless connection support coming later this year.
The ESC saves multiple datalogs up to 12.5 hours! No need to read and save data after each run. We worked on limiting cogging during acceleration and have achieved almost "sensored" performance while running sensorless motors. The ESC automatically switches from sensored to sensorless if anything happens to your motor (Battlebots team we see you).
All X3-SERIES come with JETI, Graupner, and Futaba telemetry!
Water-cooling

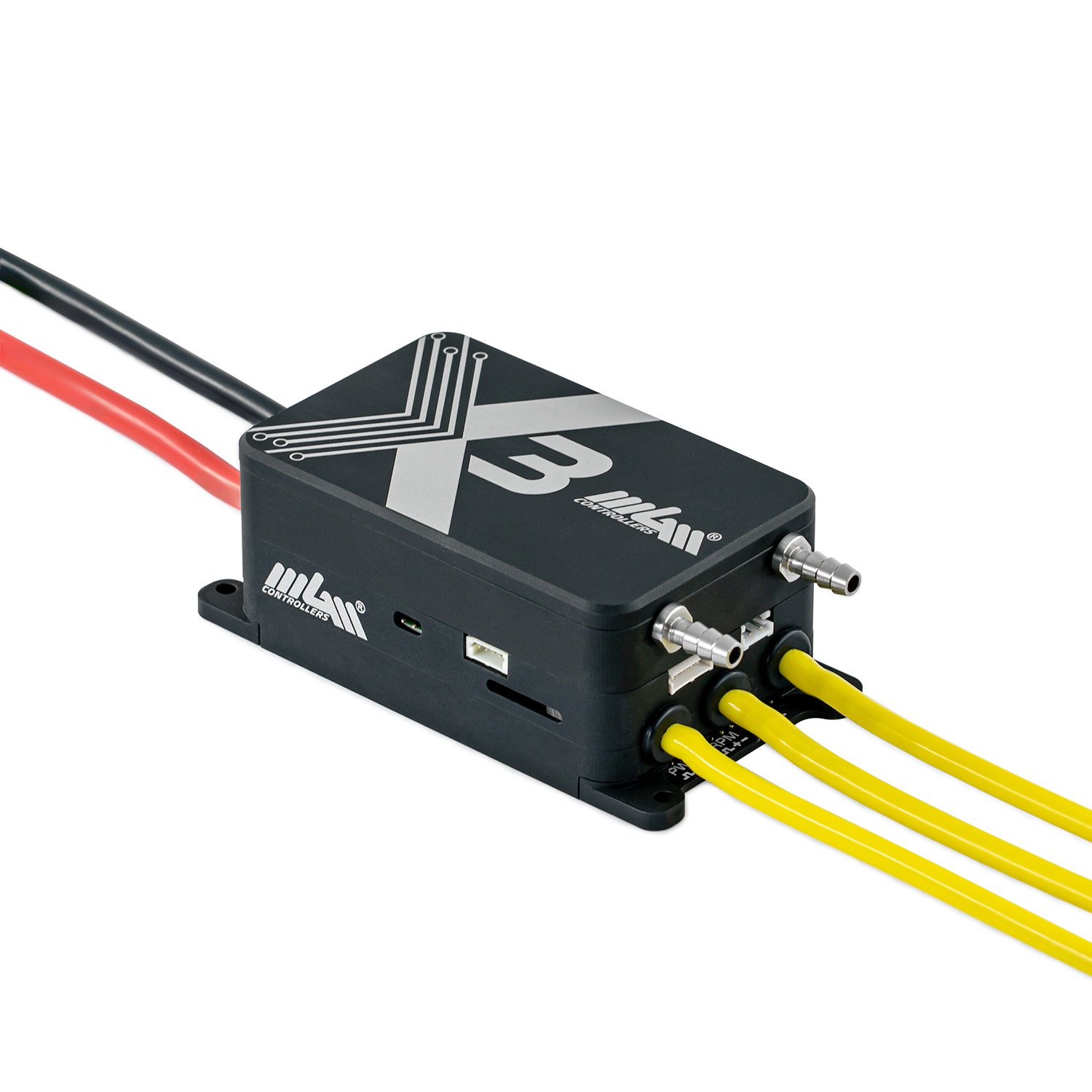

High power (14kW continuous) comes with high temperatures - that's why the new water cooling design cools with higher efficiency and a better cooling-to-weight ratio than ever before. ESC stays ice-cold even during record-breaking runs!
Durability

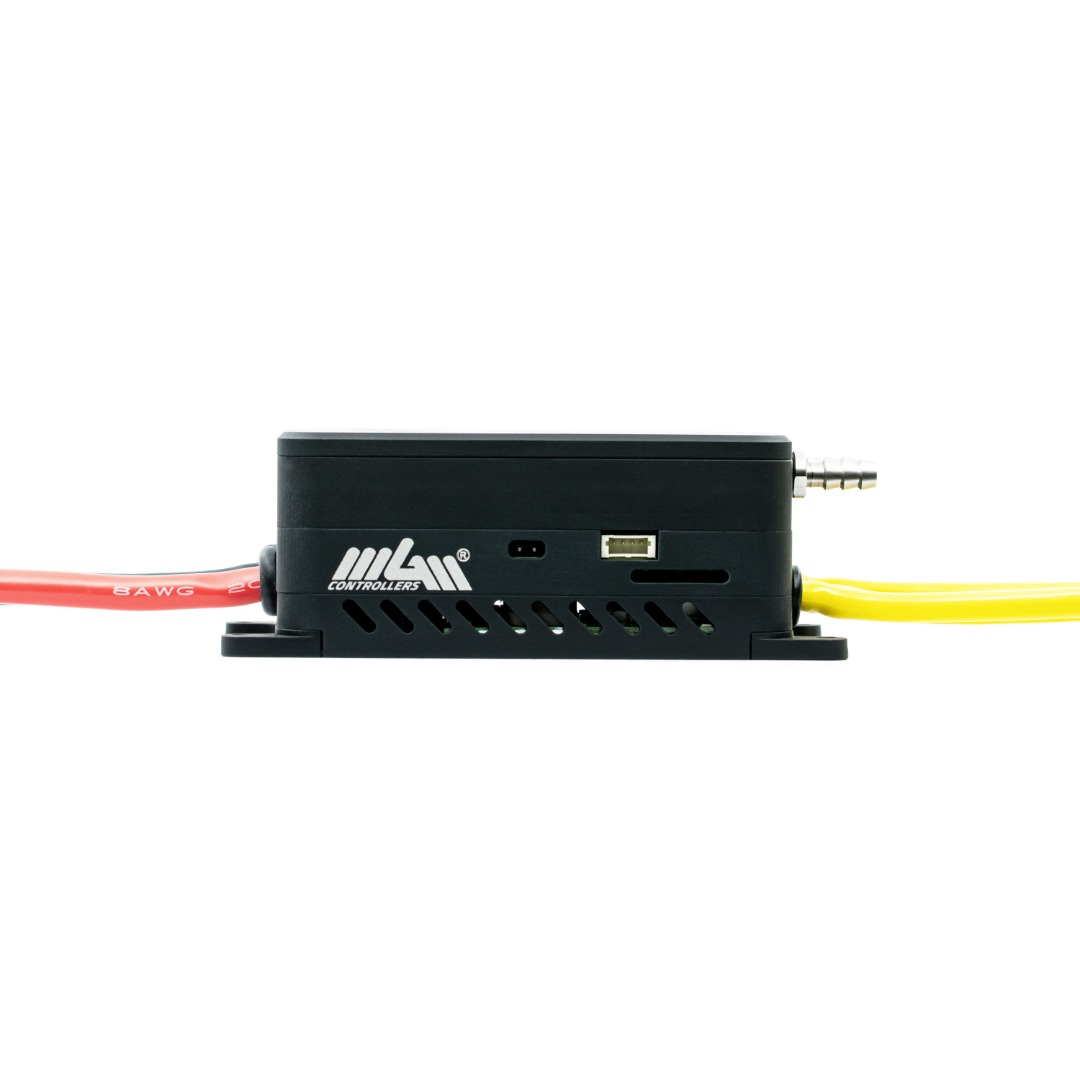

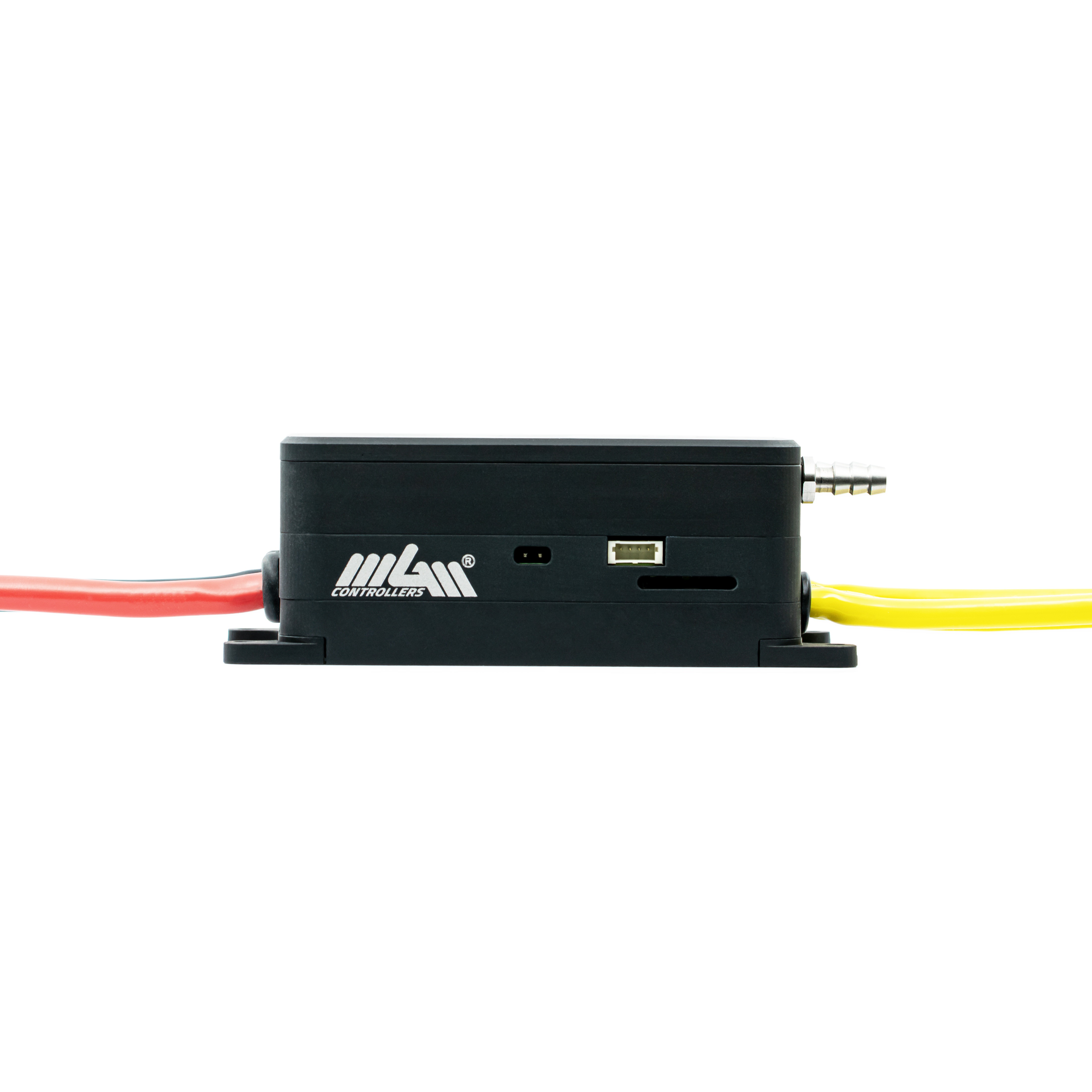

The high-quality electronics ESC is covered and protected in the highest quality aluminum housing. The surface is sandblasted and adonized for enhanced durability and scratch resistance. All necessary connections are protected inside the housing (including PC-COM connector). Even though the ESC is fully cased, there are still visible LED diodes to show you the status of the ESC.
All in one package
Integrated anti-spark protects ESC and your batteries! Powerful BEC is designed to move any servo in any situation. Adjustable voltage (5-8,5V), and 15A continuous, 30A peak current makes it the best BEC in its category.
| Max. continuous current | 400A |
| Model Type | For boats |
| Number of cells | 5 - 8 |
| Max. peak current | 900A |
| Operating voltage | 16 - 35 V |
| Programming using PC | |
| Length | 105 mm |
| Width | 55 mm |
| Height | 38 mm |
| Possibility of operation also with sensors motors | |
| Possibility of motor temperature measuring (motor protection) | |
| Telemetry (real-time back data transfer) | |
| Weight incl. all conductors | 341 gram |
The X3-SERIES is the result of over 30 years of experience in ESC development. Our newest ESCs are designed to be pushed to the limit = that's when they are most efficient. Just turn on the Keep-the-Limit function and break the records! X3-SERIES controllers have a much faster PC connectivity with our Controller 3 program finally available on Apple devices. The ESC has been upgraded with larger memory and can store up to 12.5 hours of data.
Developed with RC modelers in mind, we used our experience from various industrial projects to create reliable ESCs with sophisticated system of fuses for the safety of your model. This comes backed by 3 years warranty.
