5th Scale 12S combo
This combo strikes the perfect balance between exceptional power (17kW) and compact size, making it the optimal choice for those seeking a blend of high performance and maneuverability.
| 5th Scale 12S combo | 1 596,65 € |
| Price total excl. VAT | 1 596,65 € |
17kW Combo for 5th scale RC cars (12S)
Introducing our efficient 17kW combo, specifically paired for 5th-scale RC cars. This combo offers an ideal balance of power, efficiency, and maneuverability, making it the perfect choice for lighter RC cars or bashing.
The MGM x LMT ESC + MOTOR combos are synonymous with reliability and power. It's the perfect upgrade for those looking to take their RC model to the next level. LEHNER-MOTOREN-TECHNIK motors are renowned for their German-made quality. When paired with MGM CONTROLLERS ESC, they remain cool while delivering 17kW (22HP!) of power for your RC model.
Specifications:
30063 X3-SERIES Electronic Speed Controller (ESC):
- Maximum continuous current: 300A
- Wide voltage range: 12-63V
- Number of cells: 4-15S
- Active cooling for stable performance
- Integrated datalogger for performance monitoring - up to 12 hours of datalog
- Telemetry (Futaba, Powerbox, Graupner)

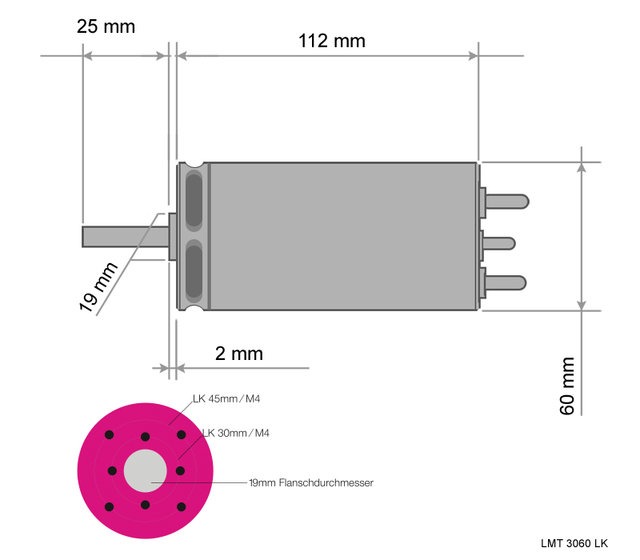

LMT 3060 Brushless Motor:
- Maximum power: 17kW
- Optimized for 50,000 RPM
- Internal aircooler
- Customizable winding for specific needs (comes with 1000Kv but you can choose your own under CONFIGURE YOUR OWN button) RPM TABLE: https://www.lehner-motoren.com/doc/rpm_all_en_08_2020.pdf
Ready to run!
The combo comes with soldered connectors on the motor and mating connectors on the motor side of the ESC. ESC comes with 10x1500uF external capacitors pack for more protection. We also solder QS8 connectors, ready for the batteries of your choice, and add a jumper so you can use either 3 or 2 batteries at the same time. (If you have specific request for soldering, leave us a note or shoot as an email). The combo includes USBCOM6i + CC_12 programming cables, which are necessary for configuring the ESC.
Read data - adjust settings - GO faster!
The X3-SERIES connects and retrieves data much faster than the previous generation. The new USBCOM6i PC module and CC_12 cables come with updated Controller 3 software (finally being available on MAC) with wireless connection and will soon support wireless connections and a mobile app.
The ESC can store multiple datalogs for up to 12.5 hours, eliminating the need to read and save data after each run. We've worked on reducing cogging during acceleration, achieving almost "sensored" performance while running sensorless motors. The ESC will automatically switch from sensored to sensorless mode if anything happens to your motor. (Battlebots team, we've got you covered).
What you are getting
ESC
1x 30063 X3-SERIES
- 1 cooling FAN L
- power cables 6.0 mm2 (10 AWG)
- 6 power cables to the motor (recommended for LMT)
- ON/OFF switch, temp sensors, telemetry, PWM
MOTOR
1x LMT 3060 for Cars
- Connectors 8.0mm, for 6 outputs including counterparts
- HiAmp LK Series30 (design with mechanical air-cooler inside of motor)
- 8mm shaft
- Flatspot on shaft
- 8/875Kv
PC CABLES
1x
USBCOM6i
1x
CC_12 cable
ACCESSORIES
1x
External capacitors pack 10x1500µF
1x
External capacitors mount
3x
QS8 connectors - 3 soldered for connection of 3 batteries in series
1x
QS8 - Jumper - So you can connect 2 batteries in series
The X3-SERIES is the result of over 30 years of experience in ESC development. Our newest ESCs are designed to be pushed to the limit = that's when they are most efficient. Just turn on the Keep-the-Limit function and break the records! X3-SERIES controllers have a much faster PC connectivity with our Controller 3 program finally available on Apple devices. The ESC has been upgraded with larger memory and can store up to 12.5 hours of data.
Developed with RC modelers in mind, we used our experience from various industrial projects to create reliable ESCs with sophisticated system of fuses for the safety of your model. This comes backed by 3 years warranty.
